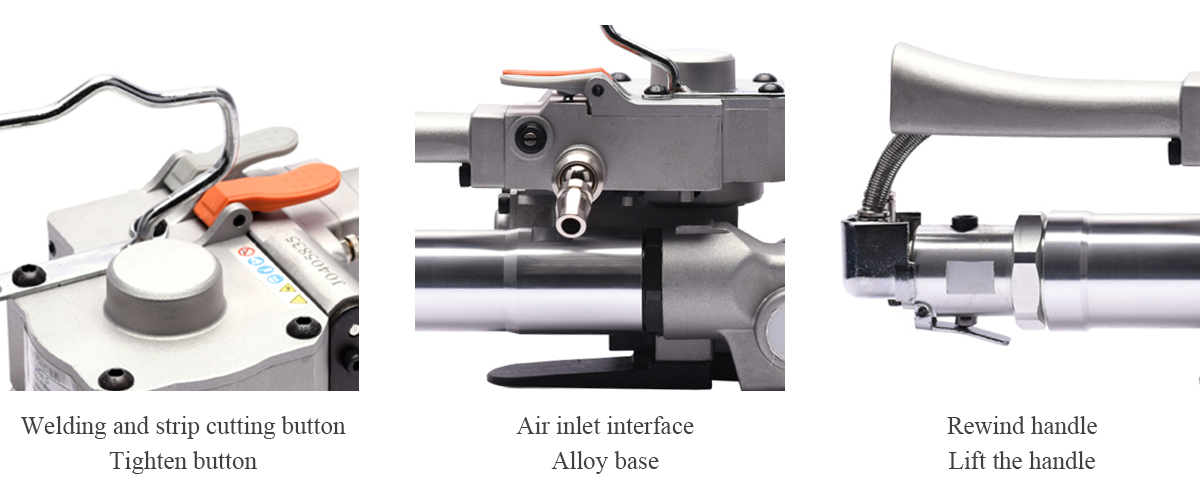

Press the tension button with right thumb until the strapping belt is fully tightened, and then press the welding button until the strapping belt is sealed and cut.
Strapping width is in 13-25mm. Max Tension is 326kg. Friction Welding is 0.5-0.8Mpa.
1.Adjust the strap width by changing the limited plate.2.Adjust the strap thickness by adding or reducing the shim.
|
Model |
A19 |
A25 |
|
|
Apply straps size |
Width |
13-19mm |
19-25mm |
|
Thickness |
0.5-1.2mm |
0.5-1.5mm |
|
|
Apply straps |
PP/PET |
||
|
Forward mode |
Up and down separate strap |
||
|
Seal straps form |
Friction and welding
|
||
|
Maximum tension force |
3500N |
||
|
Air pressure |
0.5-0.8MPa |
||
|
Weight |
3.82kg |
||
|
Specification |
L280xW160×H180mm |
||
